Product Description

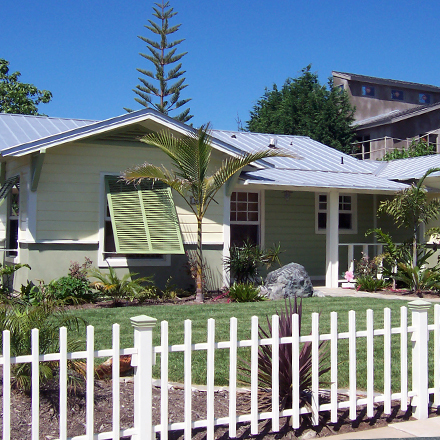

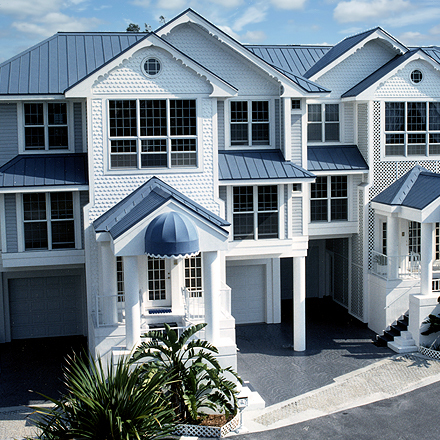

Our 5V Crimp panel is the ideal choice for those seeking to achieve a charming, vintage look. It is frequently used in roofing applications due to its resilience and ability to withstand harsh weather conditions. The aesthetic appeal of this product lends itself perfectly to light commercial applications, being that these v rib exposed fastener panels create a tight seal against the elements. When using the 5V Crimp panels, it is important to have a solid roof deck with a waterproof membrane. This will support the longevity of your build while ensuring that your roof meets your aesthetic requirements.Features
- Coverage Width - 24"
- Minimum Slope - 3:12
- Panel Attachment - Exposed Fastening System
- Gauge - 29 (standard); 26 (optional)
- Finishes - Smooth (standard)
- Coatings - Galvalume Plus®, Signature® 200
- Rib Spacing - 12" on center
- Rib Height - 1/2"
